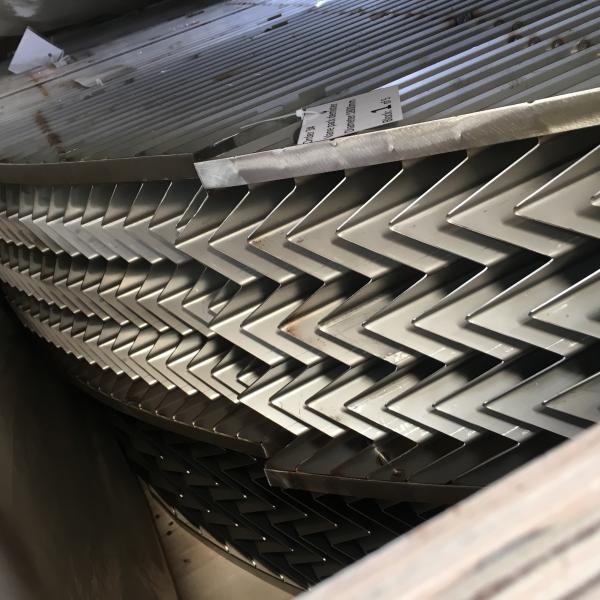

Carbon Steel Vane Type Mist Eliminator To Separate Gas And Liquid In Column

Tower Internals & Pad Mist Eliminator

Wire mesh demister, also known as a wire mesh mist eliminator, is a kind of vapor liquid separating device. It is widely used in the chemical, petroleum, medical, light, metallurgy and environmental protection industries.It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.

Using: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.

Tower Internals

Specifications

Net Block			Grid
Material	Code	Standard NO.	Material	Code	Standard NO.
Q235-A	Q235-A	GB434	Q235-A	Q235-A	GB327
20	20	BG3206	20	20	GB711
0Gr18Ni10Ti	321		0Gr18Ni9	304	GB423
0Gr17Ni12Mo2	316		0Gr18Ni10Ti	321
00Gr19Ni11	304L		00Gr17Ni12Mo2	316
00Gr17Ni14Mo2	316L		00Gr17Ni14Mo2	316L
RS-2	RS-2	Steel Grades	00Gr17Ni14Mo2	316L
NS-8	NS-80		Non-metallic materials: PTFE (F6) polyethylene, polypropylene, Nylon yarn, glass fiber and PVC and so on. Note: use other materials bearing the note when ordering
NS-80A	NS-80A
Brass Wire	H68, H65	GB310
Tin-copper Wire	QSn	GB3128
Nickel	N4, N6, N7, N8	GB3120
Titanium and Titanium Alloy	TA2, TA3, TC3, TC4	GB3623

Standard type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
Common diameter :0.20-0 .45 mm
Form code: SP
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε

High efficient type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100 90-150
Common diameter : 0.12-0.45mm
Form code: HR
Weight capacity: 128 Kg/m3
Specific surface area: 403.5 m2/m3
Porosity : 0.9839ε

High Running type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120
Common diameter : 0.21mm
Form code: HR
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
