    PP PVC CPVC PVDF Plastic Intalox Saddle Ring Tower Packing

    Ask Lasest Price
    Model Number : NK-PSR
    Certification : ISO
    Price : depends on quantity
    Payment Terms : L/C, D/P, T/T, Western Union, paypal
    Supply Ability : 300m3 per month
    Delivery Time : 10 days for one 20GP container
    • Product Details
    • Company Profile

    PP PVC CPVC PVDF Plastic Intalox Saddle Ring Tower Packing

    PP Plastic Tower Packing Super Saddle Ring 25mm, 38mm, 50mm, 76mm


    Product description

    Plastic intalox saddle ring has the characteristic of low pressure drop, large void space, large flux, high efficiency, low energy consumption etc. Furthermore excellent distribution in tower packing, it is widely apply in the separation and absorption process, device of reducing pressure. The system of deviating sulfur. Isolation of Ethylbenzene Toluene, Trimethylpentane etc.

    Advantage: low pressure drop, large void space, large flux, high efficiency, low energy consumption


    Application: Absorption,


    Physical & chemical properties of plastic random packing


    Performance / MaterialPEPPRPPPVCCPVCPVDF
    Density (g/cm3)0.94-0.960.89-0.91

    0.93-0.94

    1.32-1.441.50-1.541.75-1.78
    Operation Temp.90>100>120>60>90>150
    Chemical corrosion resistanceGoodGoodGoodGoodGoodGood
    Compression Strength(Mpa)>6.0>6.5>7.0>6.0>8.0>10.0

    Main technical index:


    DiaSurface area (m²/m³)Void Space (%)Number per m³Bulk density (kg/m³)F Factor m-1
    252888597680102467
    38265952520091309
    5025096940075282
    7620097370059220

    Note: The above data are reference to material PP.


    Package info

    packagevolumevolume/bag
    20GP containerwoven bag25-28m30.1-0.3m3
    40GP containerwoven bag52-55m30.1-0.3m3
    40HQ containerwoven bag60-65m30.1-0.3m3

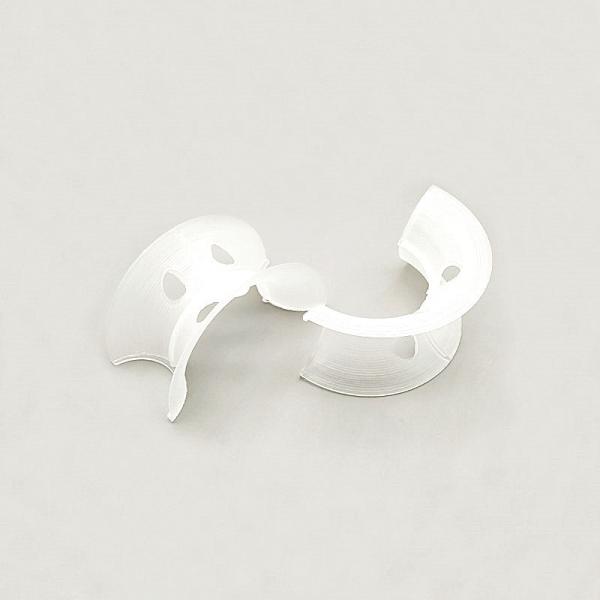

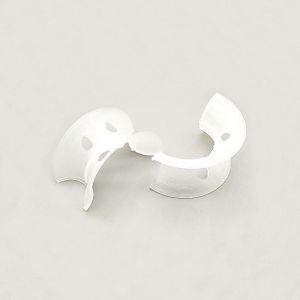

    Product photo



    Plastic Material: 100% virgin PP granules



    Production and shipment



    Other plastic random packing products

    Pall ring, raschig ring, tri-pack, saddle ring, super intalox saddle ring, polyhedral hollow ball,

    hollow ball, cascade ring, tellerette ring, vsp ring, snowflake ring, lanpac packing
